SPECIFICATIONS



Motor: Brushless

900W Gasoline Chainsaw,  25.4cc Top Handle Chainsaw, 2-Stroke Engine Chainsaw Woodworking Tools with Guide Plate Cover

Application

It is widely used in gardens, parks, farms, ranches, orchards, greenhouses, forests, camping, etc. It can be used for professional logging, sack sawing, green pruning, fruit tree pruning, root carving and ice carving, household firewood splitting, forest logging, wood cutting, twig pruning, shrub pruning, gardening, home carpentry, bamboo sawing, felling, DIY handicrafts and so on.Specifications

Style: Modern

Process: High-temperature Quenching

Color: Black, Red

Assembly Required: Yes

Material: Aluminum Alloy, Nylon, Rubber, Plastic

Rated Power: 900W

Motor Type: Two-stroke

Applicable Gasoline: above 92# Gasoline

Horsepower: 1.22hp

Displacement: 25.4cc

Speed: 9000rpm

Mixture Ratio (Gasoline: Oil): 25:1

Switching System: Automatic Homing

Carburetor Type: Diaphragm

Starting Method: Manual

Carburetor: Diaphragm Type

Maximum Diameter of Single Cut: 30cm/11.8in

Gasoline Tank Capacity: 230ml/7.78oz

Oil Tank Capacity: 160ml/5.41oz

Chain Pitch: 3/8"

Number of Chains: 44

Guide Plate Length: 30cm/11.8 in

Gross Weight: 5kg/11.02 lbs

Overall Width: 24cm/9.4in

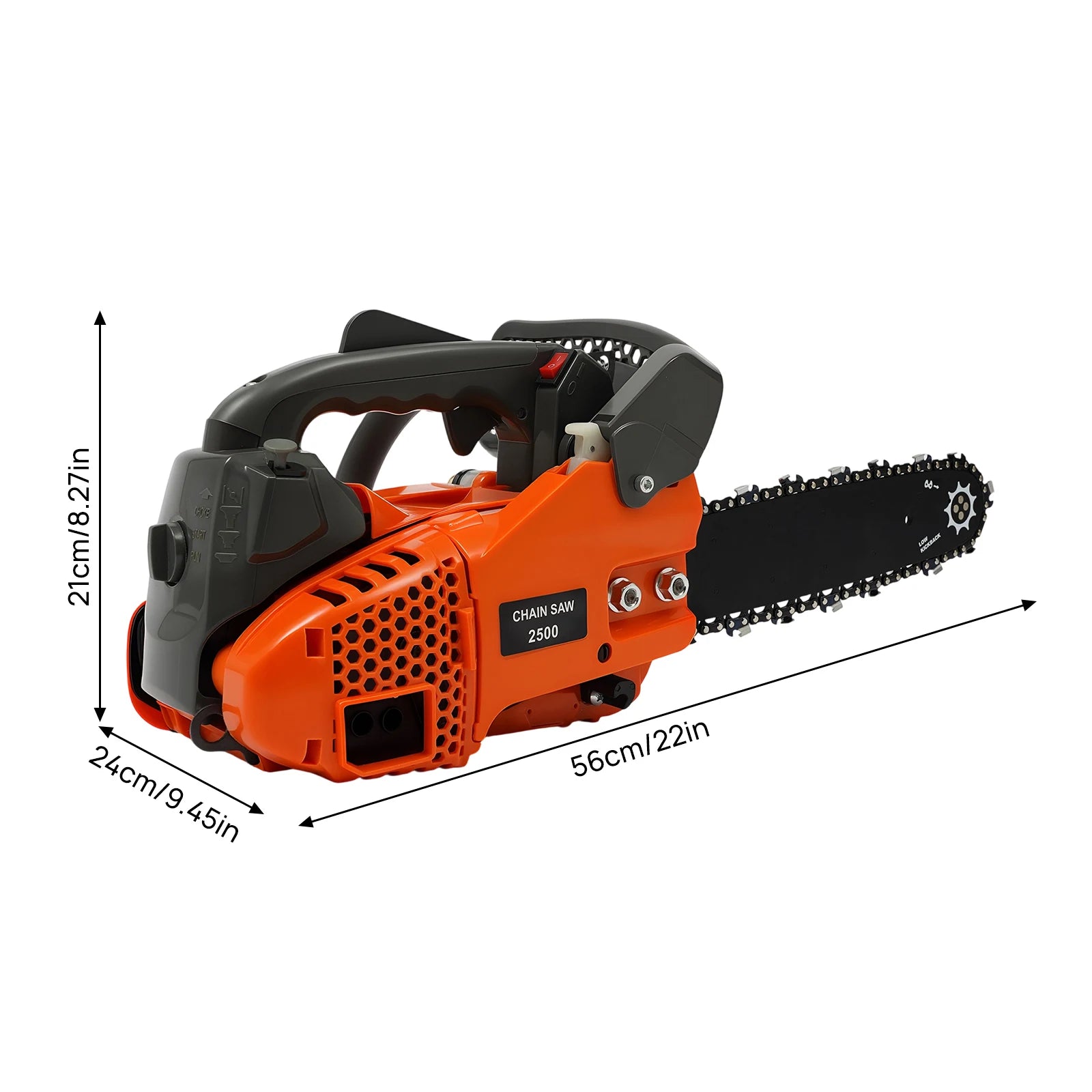

Product Size(L*H): 56*21cm/22*8.3 in

Package Size: 34*24.5*24.5cm/13.4*9.6*9.6 inPackage Included

1* Gasoline Chainsaw

1* Guide Plate Cover

1* Protective Baffle

1* English Manual

Other Accessories for Assembly Key Features

Sturdy and Durable: The aluminum alloy case with reinforced nylon shell has super stability and long life, which greatly prolongs the use of the equipment, and also reduces maintenance costs.

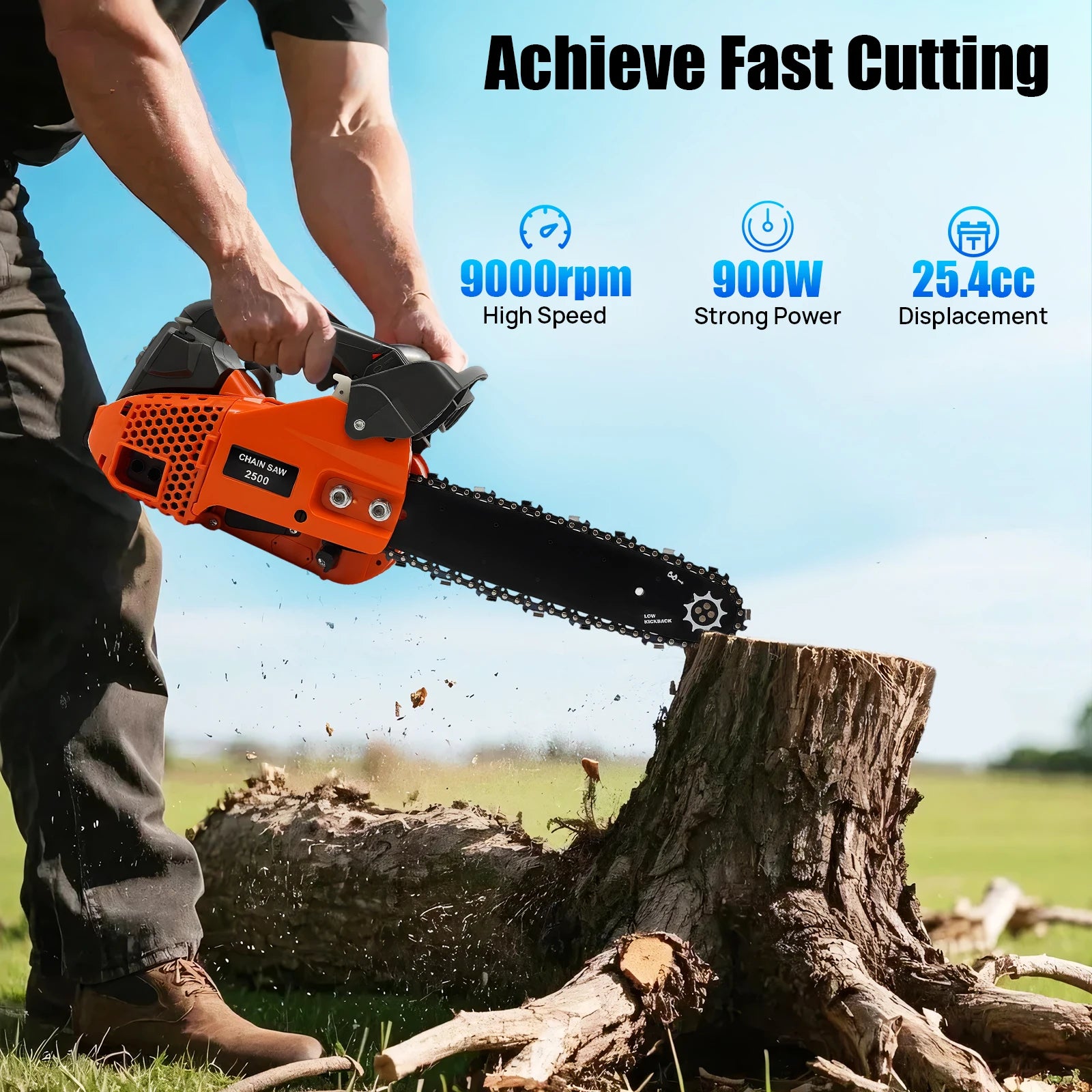

Efficient Work: The two-stroke motor is equipped with 1.22 hp and 25.4cc displacement, with a maximum power of 900W, which can quickly drive the chain to cut at up to 9,000 rpm. Moreover, the chain is quenched at high temperature for sharper cutting.

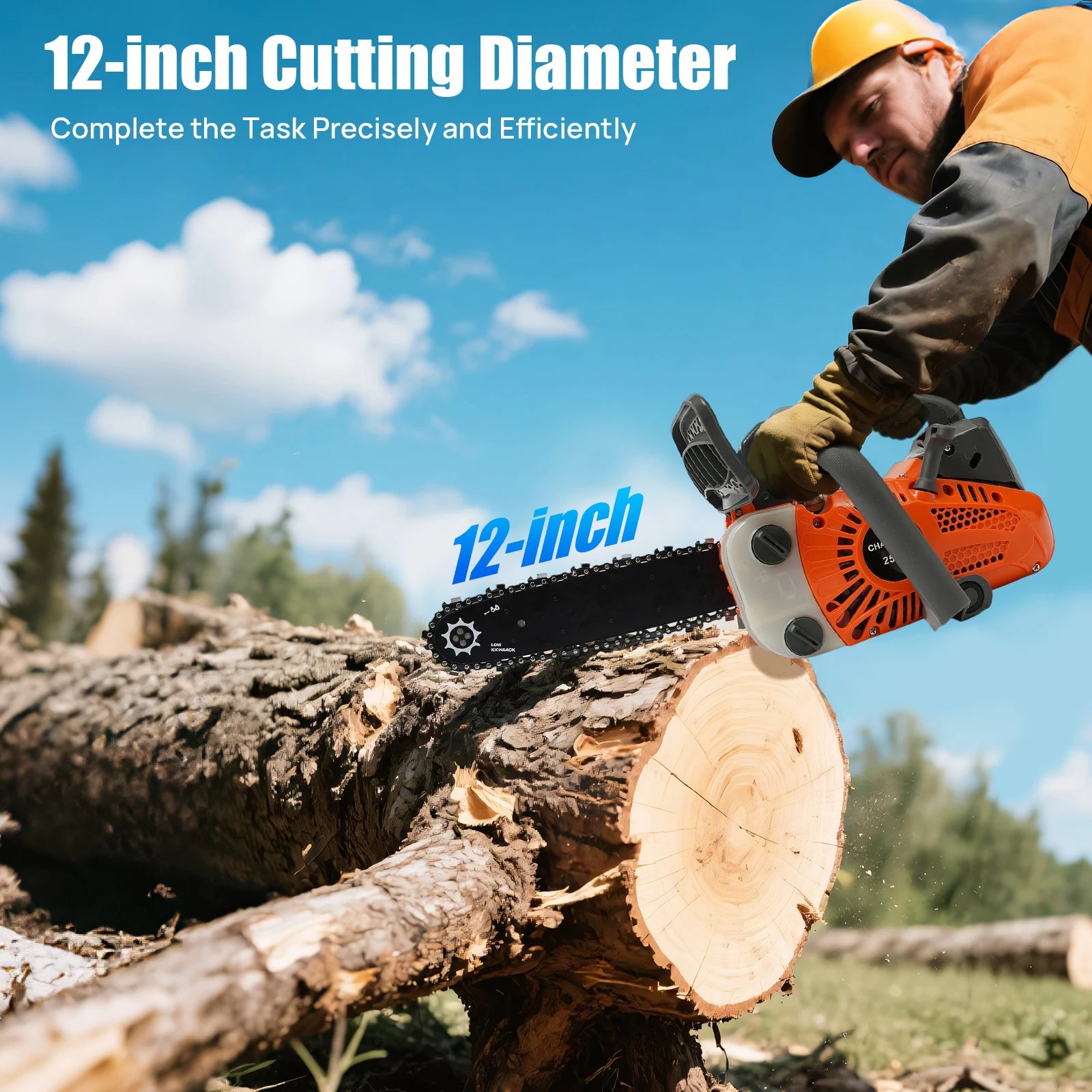

Precise Cutting: The guide plate is carefully selected to fit the 11.8-inch cutting diameter, which effectively ensures the operator's fine control over the wood, especially when performing complex work such as curved line cutting and sectional sawing, which can complete the task precisely and efficiently.

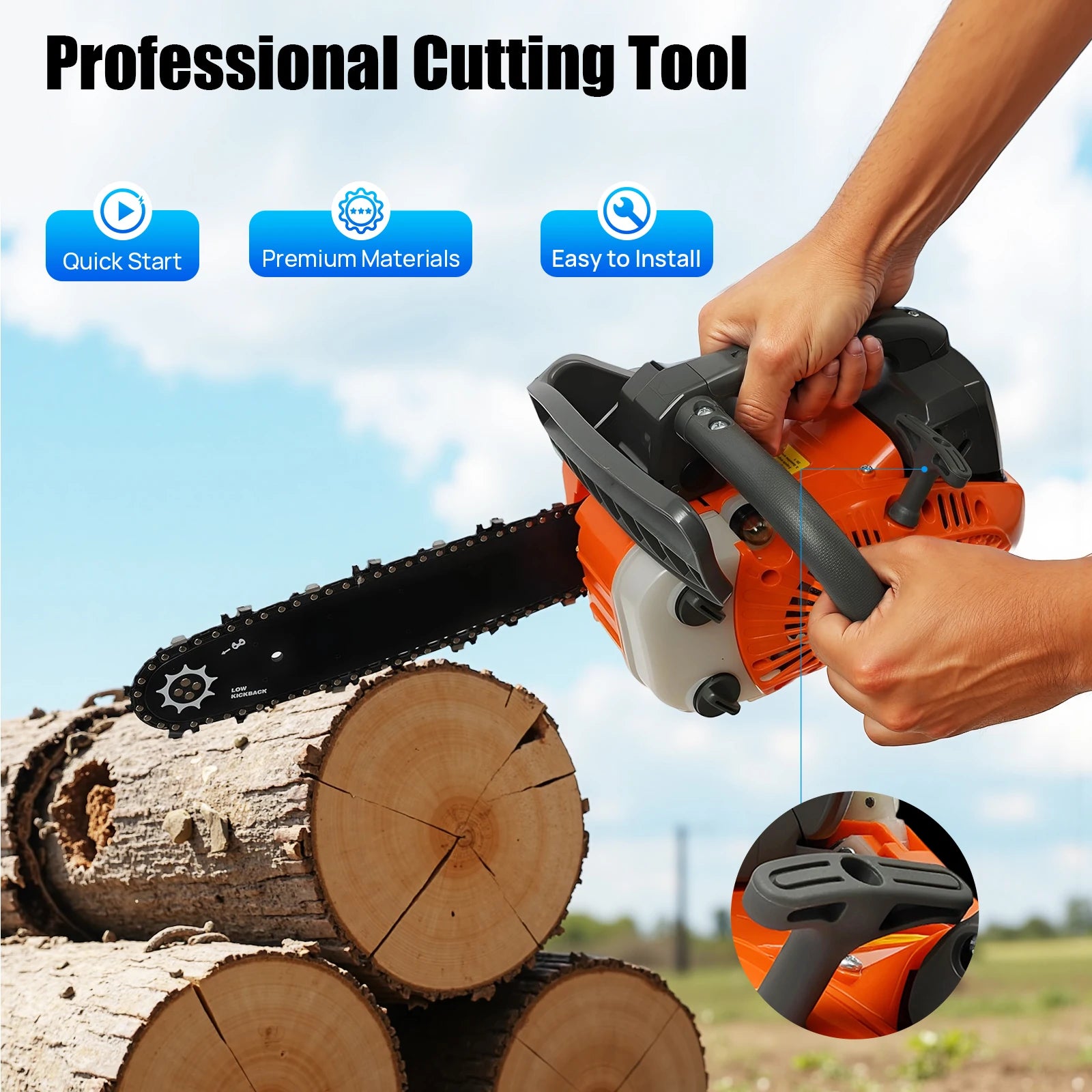

Quick Start: You only need to gently pull the pull cord 2-3 times to wake up the chain saw, which greatly improves the working efficiency and makes every logging operation as smooth as running water.



Chain Tension Adjustment: The ingenious adjustable design allows you to easily adjust the chain tension by using a spark plug wrench, eliminating interruptions caused by loose chains and making your logging trip more relaxing.

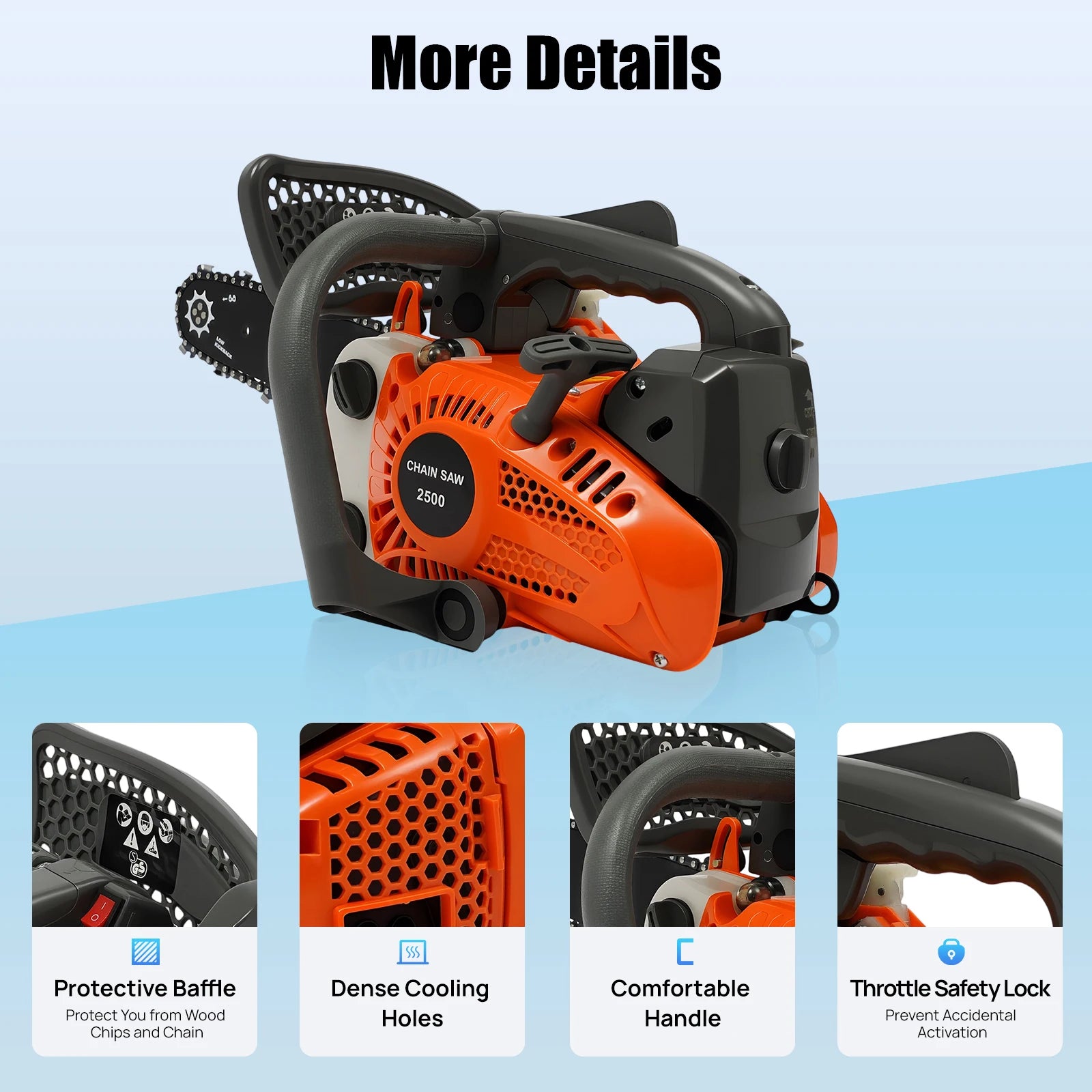

Efficient Heat Dissipation: The machine has a built-in air cooling system with multiple cooling holes to prevent high temperatures from affecting the performance of the machine.



Safe and Reliable: It is equipped with an advanced safety lock and automatic return switch, like a loyal guardian knight, for your every operation escort. The protective baffle also protects you from wood chips and chain.

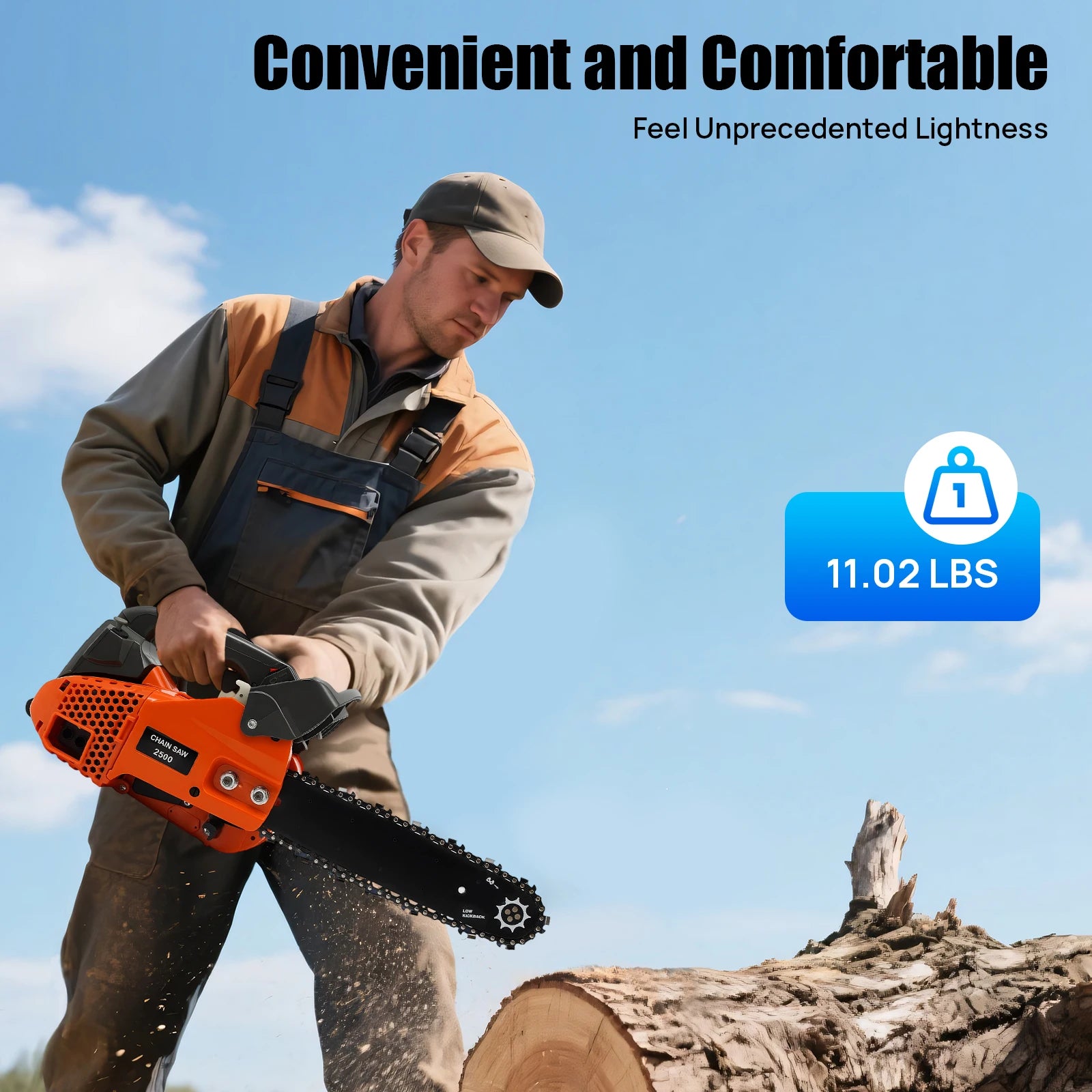

Light and Compact: 22.1*9.4*8.3 in size and 11.02 lbs weight make the whole machine light and agile, whether it is handheld operation or long-distance working, you can feel unprecedented lightness and energy saving, and even the old man and woman can easily operate.



Customer Service: We aim to provide high-quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.



Details

Visible Oil Level: The clear oil bubble pump allows you to monitor the oil level in real-time so that you can refill it in time.



Comfortable Handle: The handle adopts an advanced ergonomic design and special anti-slip treatment, giving you  a comfortable holding experience.



Guide Plate Cover: You can store the guides in the protective cover to prevent injury from accidental contact.



Reinforcement Bolts: They greatly reinforce the stability of the guide plate and prevent the guide plate from accidentally slipping off during operation.



Double-ring Piston: It can significantly reduce the wear between the piston and cylinder, piston ring, and ring groove by strengthening the seal and controlling the oil consumption.
